AT6103Z High-Efficiency CRM/CCM Multi-Mode Operation Power Factor Correction Controller
AT6103Z High-Efficiency CRM/CCM Multi-Mode Operation Power Factor Correction Controller
General Description
AT6103Z is an active power factor corrected controller to drive PFC boost stages base on ATK
patented Pseudo Digital Control (PDC) method.
In PDC loop, AT6103Z could operates in traditional fixed frequency operation for Continuous Conduction
Mode (CCM) in heavy loading and Discontinuous Conduction Mode (DCM) in lighter loading.
By optionally utilizing ZCD pin to sensing demagnetization of inductance, AT6103Z could also
operates in Critical Conduction Mode (CRM).
The loop stability and response of these multi-mode operations is well controlled by PDC Loop. AT6103Z
features a robust suite of protection features to properly handle an array of power supply operating and fault
condition.

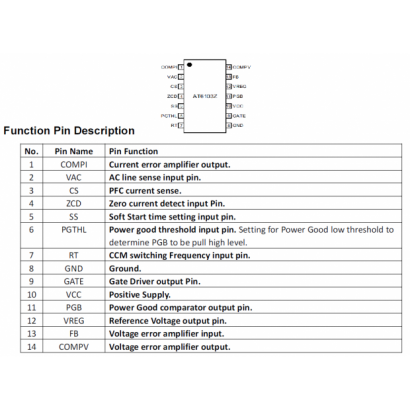

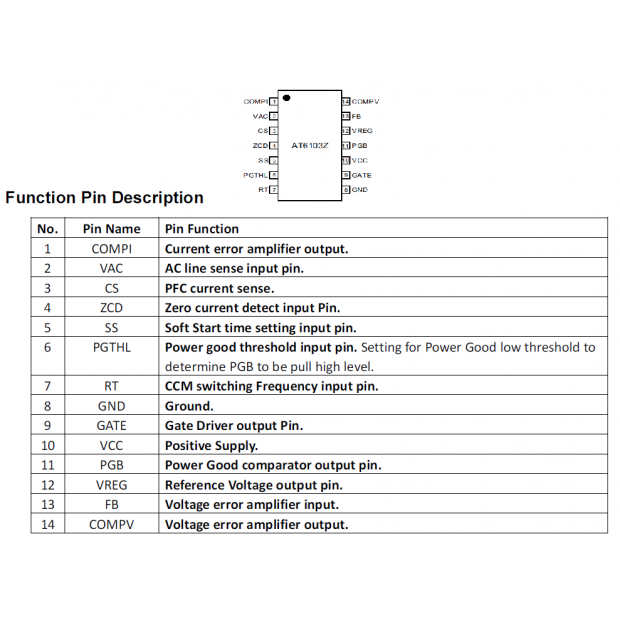

The devices is available in SOP-14L package and requires few external devices for operation.
AT6103Z is an active power factor corrected controller to drive PFC boost stages base on ATK
patented Pseudo Digital Control (PDC) method.
In PDC loop, AT6103Z could operates in traditional fixed frequency operation for Continuous Conduction
Mode (CCM) in heavy loading and Discontinuous Conduction Mode (DCM) in lighter loading.
By optionally utilizing ZCD pin to sensing demagnetization of inductance, AT6103Z could also
operates in Critical Conduction Mode (CRM).
The loop stability and response of these multi-mode operations is well controlled by PDC Loop. AT6103Z
features a robust suite of protection features to properly handle an array of power supply operating and fault
condition.
The devices is available in SOP-14L package and requires few external devices for operation.
詳細介紹

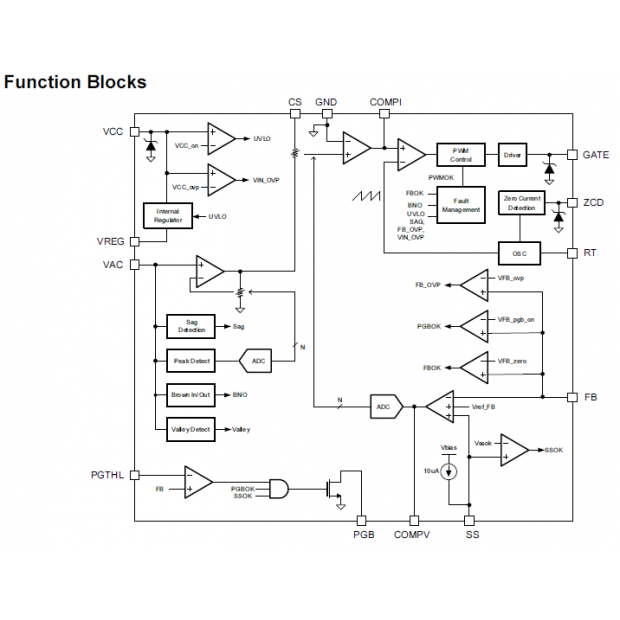

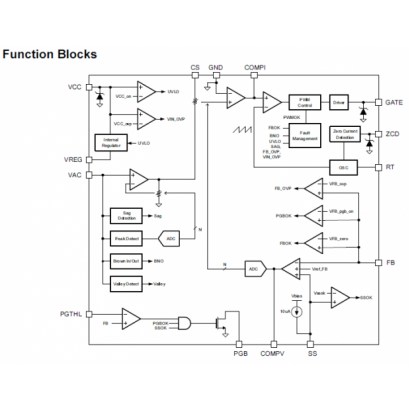

Pseudo Digital Control Loop without Analog Multiplier (patent protected)
Quick Transient Response
Intelligent AC Power Sag Protection
Multi-Mode CRM/CCM operation
Programmable Soft Start
Programmable CCM Operation Frequency 18kHz~130kHz
Sourcing 1A/Sinking 1A High Drive Capability Driver
Brown In/Out protection
Reduced Current Sense Resistor Value
24.5kHz Operation Frequency in Light Load
Burst Operation in Ultra-Light Load
Bias-Supply UVLO, Over-Voltage Protection, Open-Loop Detection
SOP-14L Package

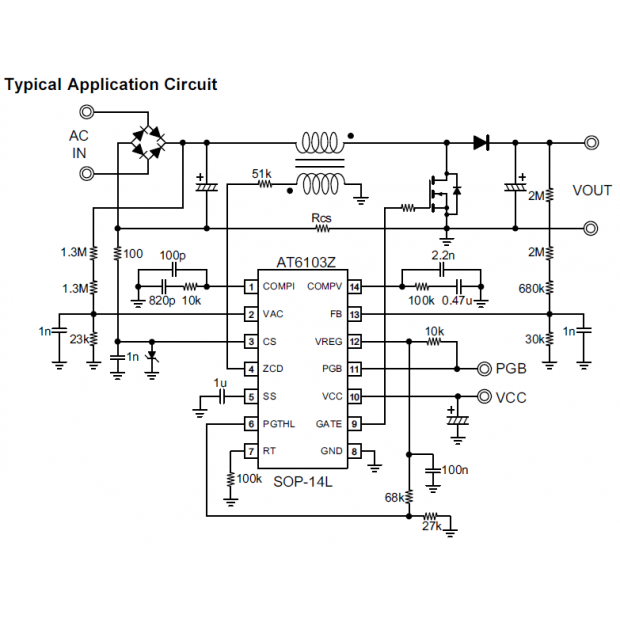

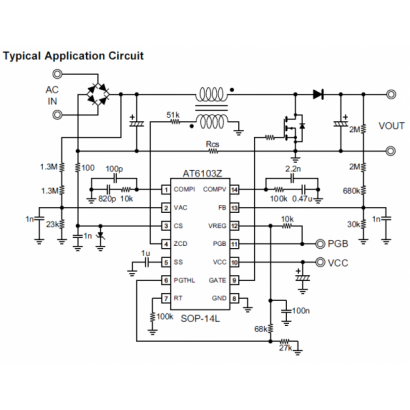

Applications
High Efficiency Server and Desktop Power Supplies
Telecom Rectifiers
High Power Adaptor
Off-Line Appliances Requiring Power Factor Correction
High Power SMPS
