AT6000Z High Voltage PWM Controller
AT6000Z High Voltage PWM Controller
General Description
AT6000Z is a highly integrated current mode PWM controller for flyback converter, optimized for high performance,
low standby power consumption and cost effective offline flyback converter applications.
The AT6000Z built-in multiple protection with VCC under voltage lockout (UVLO), VCC over voltage protection
(OVP), high voltage startup circuit, VCC clamp, GATE clamp, cycle-by-cycle current limiting (OCP), over load
protection (OLP), and leading-edge blanking (LEB) of the current sensing to prevent circuit damage occurred under
abnormal conditions.

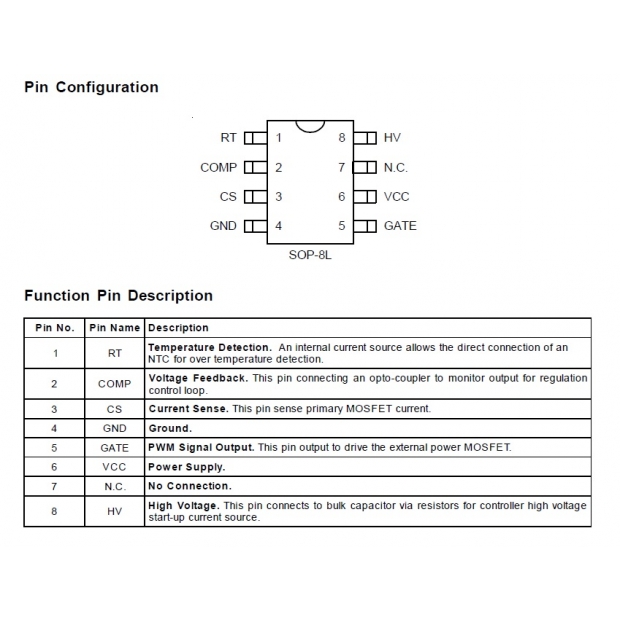

The AT6000Z is available in an SOP-8L package and require very few external devices for operation
AT6000Z is a highly integrated current mode PWM controller for flyback converter, optimized for high performance,
low standby power consumption and cost effective offline flyback converter applications.
The AT6000Z built-in multiple protection with VCC under voltage lockout (UVLO), VCC over voltage protection
(OVP), high voltage startup circuit, VCC clamp, GATE clamp, cycle-by-cycle current limiting (OCP), over load
protection (OLP), and leading-edge blanking (LEB) of the current sensing to prevent circuit damage occurred under
abnormal conditions.

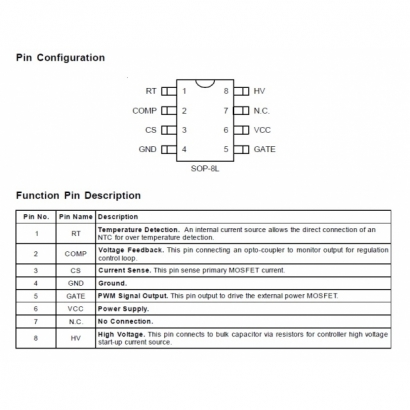

The AT6000Z is available in an SOP-8L package and require very few external devices for operation

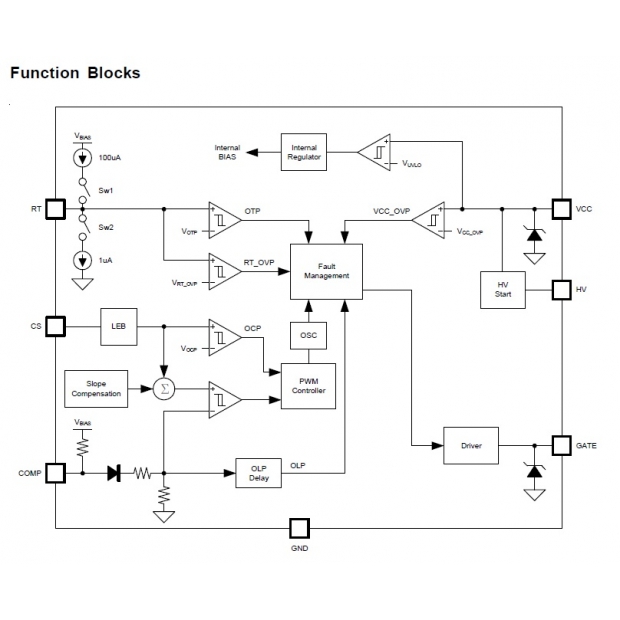

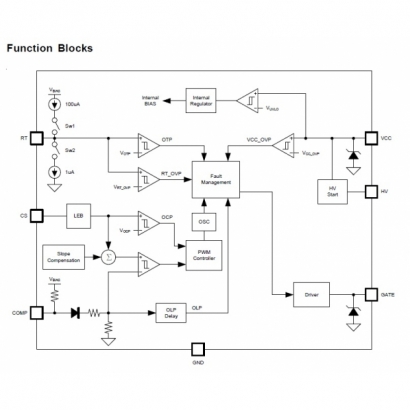

詳細介紹
High Voltage Startup Circuit
VCC Under Voltage Lockout (UVLO)
VCC Over voltage Protection (OVP)
Cycle-by-Cycle Current Limiting (OCP)
Over Load Protection (OLP)
Connection of an NTC for Over Temperature Protection (OTP)
Leading Edge Blanking (LEB)
VCC & Gate Voltage Clamp
65kHz Switching Frequrncy
500mA Source/500mA Sink Gate Driver
SOP-8 Package

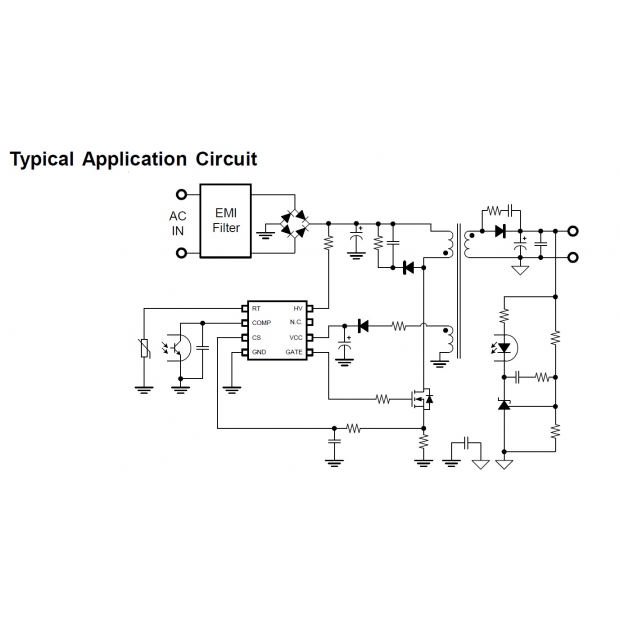

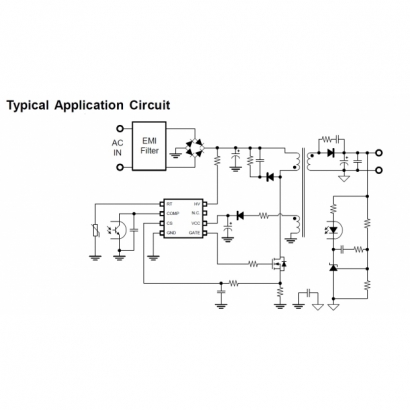

Applications
AC/DC Switching Power Adaptor
Battery Charger
Open Frame Switching Power Supply
